High-quality ACSR Rabbit Conductor with Low Price

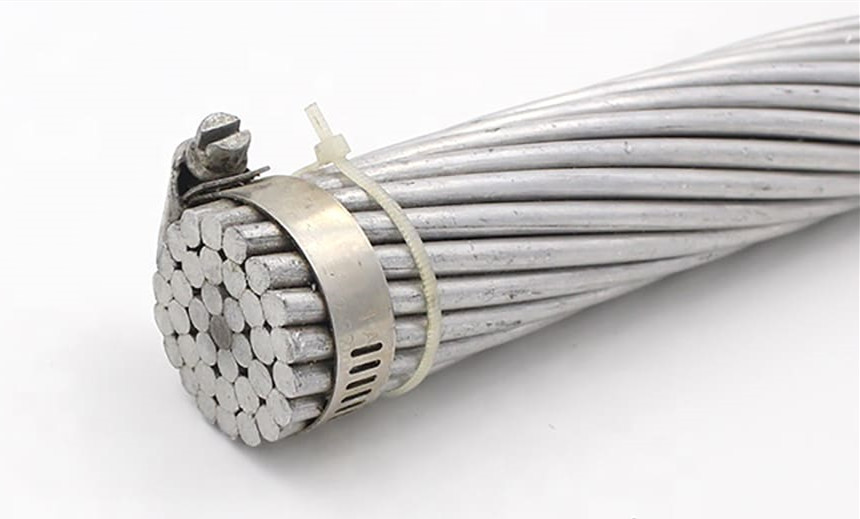

ACSR Rabbit Conductor
ACSR Rabbit Conductor

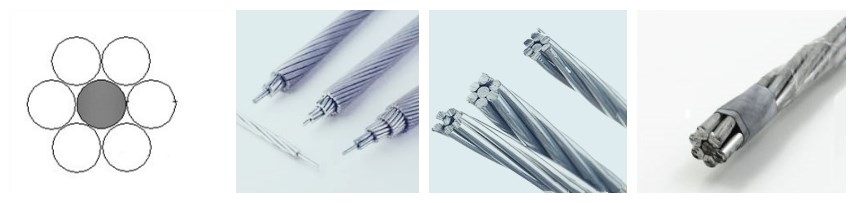

What’s rabbit conductor?

Form the name, we can know the acsr rabbit conductor is aluminum conductor steel reinforced. Rabbit belongs to BS-215 standard, which is British standard. Now, I will talk about the acsr rabbit conductor specifications.

Code name  Rabbit
Nominal aluminum area mm 250

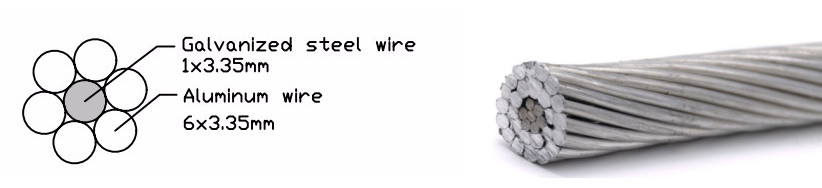

Stranding structureAl. No.6
Al. Dia.3.35
St. No.1
St. Dia3.35
Sectional area of aluminum mm 252.88
Total sectional area mm 261.7
Overall diameter mm10.05
Totalkg/km 214
Calculated breaking load daN1835
Calculate D.C resistance at 20 ℃ Ω/km0.5426
Current RatingA185

You can click here to get the free sample. Email: sales@hdcoverheadconductor.com.

The nominal aluminum area of rabbit acsr conductor is 50 mm2. it strands aluminum and steels with the same diameter. Their diameter is 3.35 mm. Among them, the aluminum number is 6, and the steel number is 1. From the accurate calculation, we can know the overall diameter is 10.05 mm. The sectional area of aluminum is 52.88 mm2, and total sectional area is 61.70 mm2. After the final cabling of acsr rabbit, the total linear mass should be 214 kg/km. You can use this simple data to test if it is qualified. There are other acsr rabbit conductor specifications. For example, the calculated breaking load 1835 daN, and the calculated D.C resistance is 0.5426 Ω/km at 20 ℃. When rabbit conductor is working, the current rating should be 185A.

If you want to buy the acsr rabbit conductor, or you may not know what you want to buy, you can refer to these acsr rabbit conductor specifications. You can send inquiry to get the free sample.
Email: sales@hdcoverheadconductor.com.

What can we prevent the rabbit acsr conductor getting fire?

As we all know, once the cable get fire, it will be very dangerous. Expect for buying the high-quality acsr rabbit, we can do some measures in advance.

First, you must be careful when you install the cable. You must ensure the quality of construction of construction. You can hire skilled work and adhere to the requirement. Especially pay attention to the quality of cable connector. It can provide a good working environment for rabbit conductor. You can contact us to get more details.

the rabbit conductor installation

The next is check the acsr rabbit conductor regularly. After the cable put into use, you must increase the monitoring of cable operation in case of overloading. Once you find the abnormal situation, you must solve as soon as possible. The cable loop switch and protection of calibration maintenance is necessary. We need to ensure the normal working of rabbit acsr conductor. What’s more, you must know the rabbit conductor size, then you can know hoe to judge if the cable id normal. Email: sales@hdcoverheadconductor.com.

What can we do for you ?

rabbit producing process

Huadong Cable Group is aim to provide customer the high-quality products. Mutual benefit is our mutual pursuit. We can prove our acsr rabbit will totally satisfy your requirement. We also have our own testing system. Before the rabbit conductor leave the factory, we will inspect strictly. Only the qualified products will send to you. If you ever searched acsr rabbit conductor price list, you will know the market.
Email:  sales@hdcoverheadconductor.com.

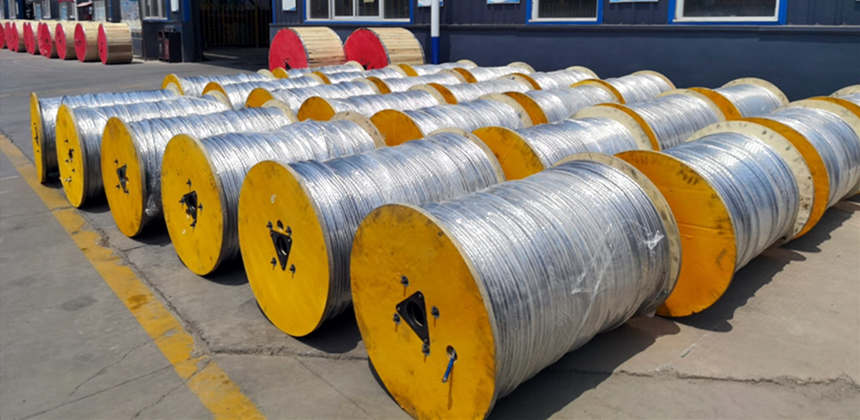

testing, package and delivery of rabbit conductor

You can send us inquiry. We will provide the professional quotation to you, which contains the low price. By the way, we can provide you the free sample, so you can judge from the sample.
Email: sales@hdcoverheadconductor.com.

Customer Case

customer visiting of rabbit conductorcustomer cooperation of rabbit conductor

Huadong Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. You can visit our factory to see our factory or get the free sample: sales@hdcoverheadconductor.com.
