ACSR Cable & Wire

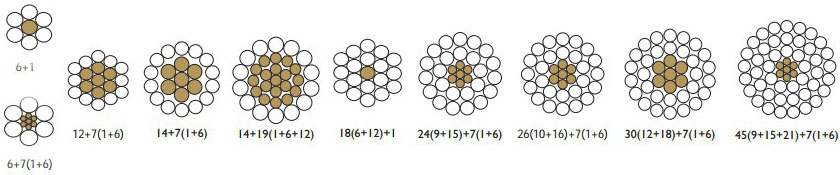

acsr cable structure

ACSR wire is one type of bare conductor, and is used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. It has many standards. Meanwhile, every standards contains many acsr conductor.

Get the free sample here: sales@hdcoverheadconductor.com.

Code Name-BS Standard:

ACSR Coyote Conductor
ACSR Dog Conductor
ACSR Lynx Conductor
ACSR Mink Conductor
ACSR Moose Conductor
ACSR Panther Conductor
ACSR Rabbit Conductor
ACSR Squirrel Conductor
ACSR Weasel Conductor
ACSR Wolf Conductor
ACSR Zebra Conductor

Get a free sample by E-mail: sales@hdcoverheadconductor.com.

Code Name-Canadian  Standard:

ACSR Chickadee Conductor
ACSR Dove Conductor
ACSR Drake Conductor
ACSR Hawk Conductor
ACSR Lapwing Conductor
ACSR Osprey Conductor

Get a free sample by E-mail:sales@hdcoverheadconductor.com.

The simple introduction to acsr cable

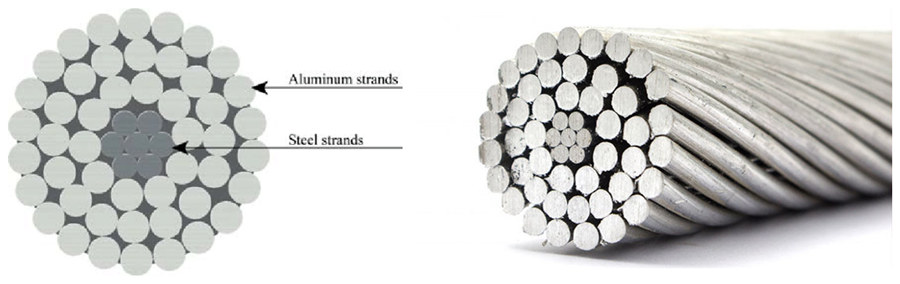

simple acsr structure

ACSR wire mainly consisits of two materials: aluminum and steel. Aluminum strand around the steels. Actually, the cable acsr is the most widely used in the transmission overhead line, and has irreplaceable status. The kabel acsr has the strong performance. First is the strength. The steel has the very strong strength. So it can withstand the bad weather, such as: wind, snow and so on. Second is it’s the strong transportation of power. There are many acsr core wire sizes in the market to satisfy customers’ needs. Third is the security. ACSR cable owns good conductivity, so it will produce less heat when transport the power. Then it will reduce the line heating problem, and improve the security. Huadong Cable Group can provide you all kinds of acsr wire sizes, you can tell us your requirement, we will reply you with 12 hours.
E-mail: sales@hdcoverheadconductor.com.

What’s the main cable acsr?

Now I will introduce you some acsr wire sizes. For example, acsr lapwing conductor belongs to ACSR-ASTM-B232 standards. About area, the aluminum area is 805.68mm2, and the steel is 55.48mm2, so the total area is 861.16mm2. The acsr lapwing conductor strands 45 aluminum, which the diameter is 4.77mm. It strands 7 steels insides, which the diameter is 3.18mm. Through the calculation, we can know, the approximate overall diameter is 38.16mm. The linear mass of acsr lapwing conductor is 2667kg/km. Among them, the aluminum is 2232kg/km, and the steel is 435kg/km. In addition, the rated tensile strength is 18702daN, and the Maximum D.C. Resistance is 0.03595Ω/km at 20℃. Current rating is 911A.

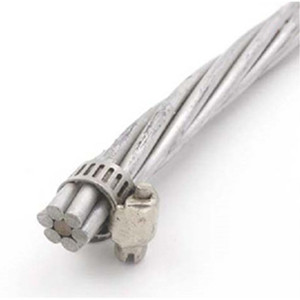

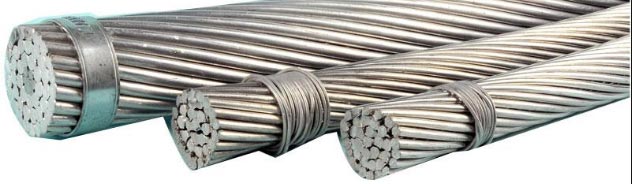

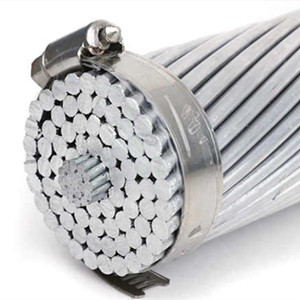

acsr conductor sample

This is one specification of kabel acsr, and there are other acsr wire size, such as acsr kundah conductor, If you are interested in the acsr kabel, you can contact us for more details. Of course, we can customize for you according your requirement. E-mail: sales@hdcoverheadconductor.com

How to produce high-quality acsr cable?

If you want to get the high-quality production, it must be produced by the strict producing technology. The production of cable acsr has particularity. There are four processes to produce cable: wire drawing, bare conductor stranding, extrusion insulation and cladding. In the production of kabel acsr, it mainly refer to two process: wire drawing and bare conductor stranding. You can judge if a factory is good from these process. As one of the great acsr cable manufacturers, huadong cable strictly producing according to these steps. We can provide you the producing video.  Email: sales@hdcoverheadconductor.com

The drawing and the acsr cable

In the metal pressure processing, let the metal go through a pinch under the external forces, and get the required cross-section area or shape. This is known as metal drawing. As we all know, the general cable acsr has its own required area, shape and size. When you buy the cable acsr, we will check the acsr wire size with the manufacturers. So this section is very important. It needs very accurate calculation. Such as the pinch and the tension. If you has any problem, you can come and visit our factory.
Email: sales@hdcoverheadconductor.com

the stranding and testing of acsr cable

Stranding aims at increasing the softness and integrity of kabel acsr. According to the specified direction, Two or more aluminum and steels intertwined, which called stranding of acsr core wire. These are the two main producing technology of acsr kabel. Of course, there are other producing process. If you want to see the real producing situation, you can leave your message,we can send you video, or you can visit our factory.  Email:sales@hdcoverheadconductor.com

What are our advantages?

Huadong Cable Group is one of the famous acsr cable manufacturers in China. We own 20 sets production lines and 30 sets testing machines. Now we build a new factory, and we have many skilled workers. So we have the ability to produce the high-quality general cable acsr.

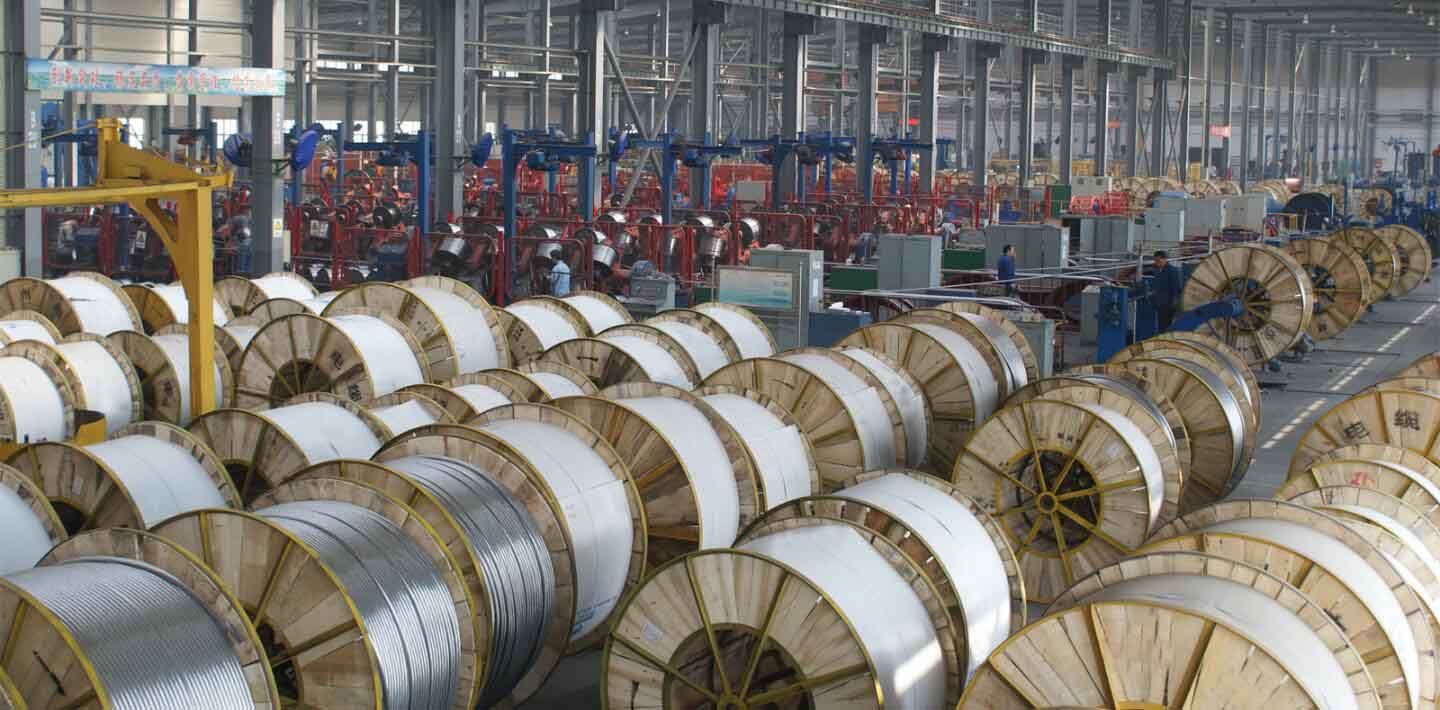

acsr cable plant-huadong

We adopt the good materials, whatever aluminum or steel. As we all know, aluminum in henan is very cheap. The same materials, we can buy in a very cheap price. The cost reduces, and the acsr cable will be cheap. Huadong can get a place in the acsr cable price list. So if you choose huadong, you can get the low acsr wire price. Email: sales@hdcoverheadconductor.com

In the producing process. Huadong pays more attention to control every aspect, which produces cable acsr. In the wire drawing, we consider seriously about the size of pinch. As we all know, the pinch size decide the size of conductor. So we needs to control the size. In case of the pinch overuse, we will change pinch regularly. In addition, we will adjust the grease temperature and change the wiped felt. The stranding equipment of kabel acsr is cleaned frequency, and make sure it doesn’t has oil.

the producing plant of acsr wire-huadong

After the final cabling, we will test the acsr core wire. We will measure the length, mass, resistance and other acsr wire size. As one of great acsr cable manufacturers, we can promise you the acsr kabel with specific specification. You can search acsr cable price list, you will know our price is very reasonable. Huadong cable will be a good partner for you. Email: sales@hdcoverheadconductor.com
