What’s the lynx conductor?

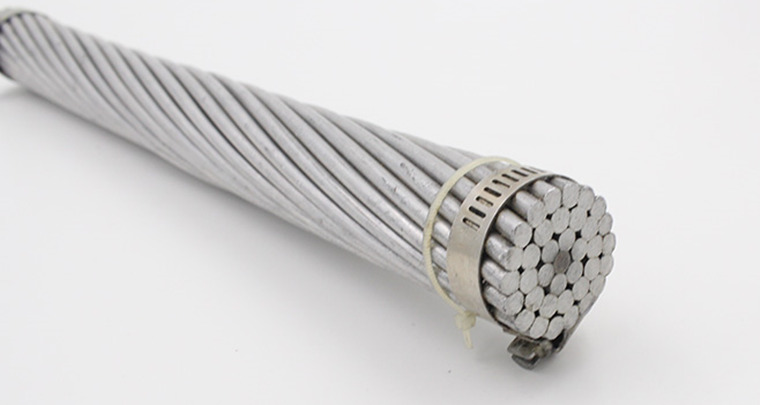

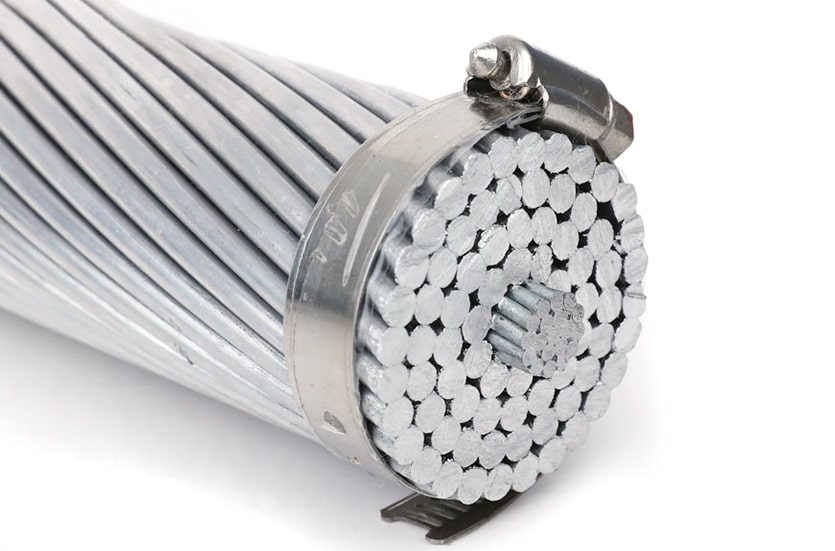

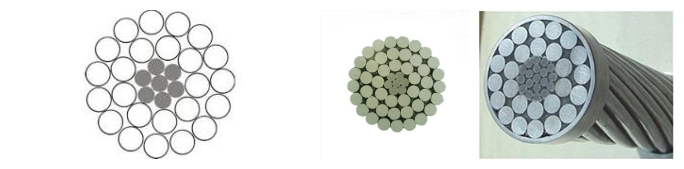

ACSR lynx conductor is one of the kind of aluminum conductor steel reinforced. It is the ACSR-BS215 standards. ACSR lynx conductor strands 30 aluminum and 7 steels, and their diameter is the same, and they are all 2.79 mm. After the cabling, the overall diameter is 19.53 mm. From the calculation, the sectional area of aluminum is 183.40 mm2, and total sectional area is 326.20 mm2. There are a simple way to test the lynx conductor. The total linear mass is 842 kg/km. If the weight of acsr lynx conductor is too high or too low, you must be careful. At the 20℃, the calculate D.C resistance is 0.1576 Ω/km. The calculated breaking load 7980 daN. When the power goes through the acsr lynx, the current rating is 386 A.
|Nominal aluminum area mm 2||175|
|Stranding structure||Al. No.||30|
|Sectional area of aluminum||mm 2||183.4|
|Total sectional area||mm 2||326.2|
|Calculated breaking load||daN||7980|
|Calculate D.C resistance at 20 ℃||Ω/km||0.1576|
These is the basic acsr lynx conductor specification. If you can’t confirm your want, you can contact us to get more details. Email: firstname.lastname@example.org.
What must you do in the using the lynx conductor?
ACSR lynx conductor consists of many flammable substances. So it may cause some accidents in the using. In the using process, you must pay attention to these aspects as follow.
From the acsr lynx conductor specification, we can know the current rating. You should make sure this numerical value. But if the quality of acsr lynx isn’t good, or the specification isn’t right. It also may cause the accident. So you must seek the reliable seller. In Huadong Cable Group, the product will be test before they leave the factory. So we can prove our quality,you can send the inquiry now.
Expect of the quality, you should pay more attention to the cable tray. In the construction, the cable, with different application and different voltage, shouldn’t be installed in the same layer. You should compared with the other kinds conductor. If you want to install them in the same cable stray, you need isolate them with partition. Email: email@example.com.
In the cable tray, the acsr lynx conductor should be grouped, and fixed by cable clamps. As for horizontal installation, you should fixed acsr lynx at intervals of 1 m to 1.5 m. These can influence the installation, then influence the using. So you must hire professional workers.
You should know another point. The cable tray and its hanger surface should be brushed fire coating and other measures. Every country has their own requirements. Do if you want to install the acsr lynx conductor, you should know the related provisions. Especially the construction that need high fire safety requirements, you shouldn’t adopt the aluminum alloy cable tray. Expect other thighs, the quality of acsr lynx conductor is the most important. So contact us get the high-quality products.
What can we do for you?
I am sure you have seen the acsr lynx conductor specification. If it is your wanted production, you can send us the inquiry. We will provide you the professional quotation within 12 hours. If it isn’t, you can also contact us. We can provide you more specifications. We also can customize according to your requirements. In addition, we promise you a very reasonable price. Email: firstname.lastname@example.org.
What are our advantages?
Get the free sample: email@example.com.

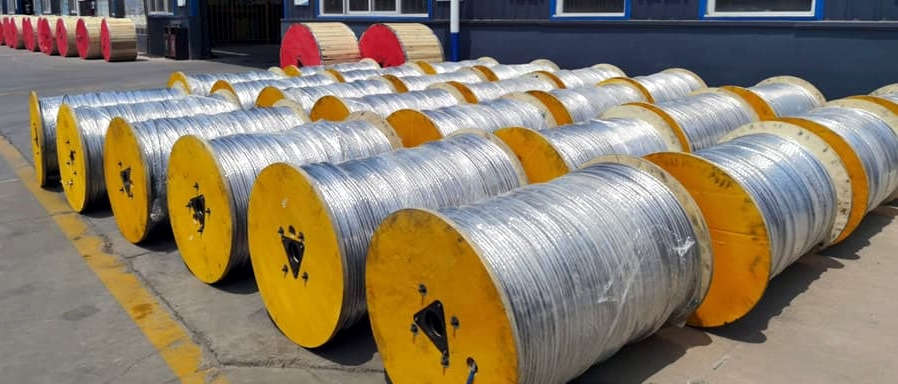

Huadong Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. You can visit our factory to see our factory or get the free sample: firstname.lastname@example.org.
