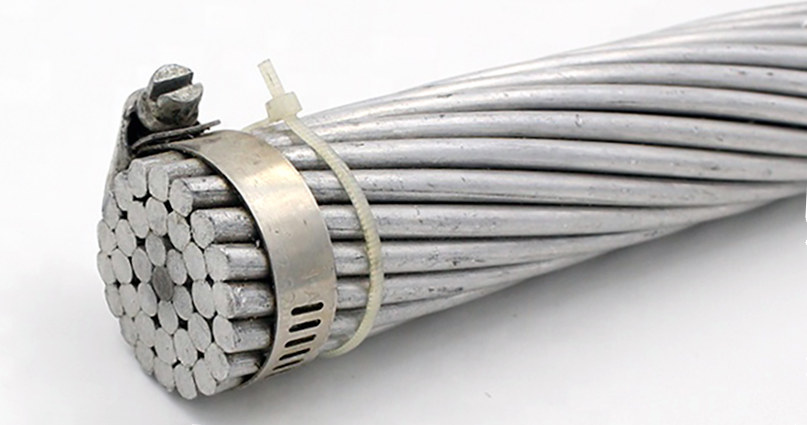

What’s 1272 acsr?

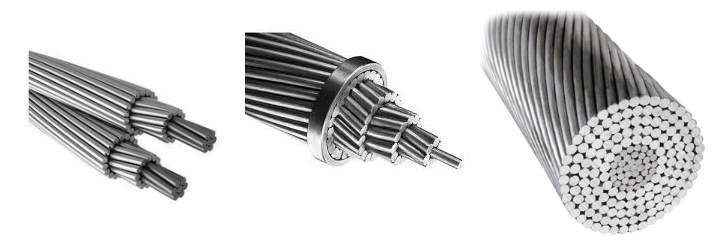

1272 mcm acsr is one type of the aluminum conductor steel reinforced. It is ACSR-ASTM-B232 standards. 1272 acsr contains three products. They are bittern conductor, pheasant conductor and skylark. Their aluminum area is 644.51 mm2. I will introduce for you now, and you can see if there are the your wanted products. Email: sales@hdcoverheadconductor.com.
1272 ACSR Conductor Parameter:
| Code name | Bittern | Pheasant | Skylark | ||
|---|---|---|---|---|---|
| Area | Aluminum | AWG or MCM | 1272 | 1272 | 1272 |
| mm 2 | 644.51 | 644.51 | 644.51 | ||
| Steel | mm 2 | 44.52 | 81.63 | 17.87 | |
| Total | mm 2 | 689.03 | 726.19 | 662.38 | |
| Stranding and diameter | Aluminum | mm | 45/4.27 | 54/3.90 | 36/4.78 |
| Steel | mm | 7/2.85 | 19/2.34 | 1/4.78 | |
| Approximate overall diameter | mm | 34.17 | 35.1 | 33.42 | |
| Linear mass | Aluminum | kg/km | 1785 | 1795 | 1777 |
| Steel | kg/km | 349 | 638 | 140 | |
| Total. | kg/km | 2134 | 2433 | 1917 | |
| Rated tensile strength | daN | 15148 | 19400 | 11585 | |
| Maximum D.C. Resistance at 20 ℃ Ω/km | 0.04494 | 0.04516 | 0.04472 | ||
| Cuttent Rating | A | 802 | 807 | 807 |
Get the free sample Email: sales@hdcoverheadconductor.com.
Bittern conductor belongs to 1272 mcm acsr. It strands 45 aluminum with the diameter of 4.27 mm, and strands 7 steels with the diameter of 2.85 mm. The approximate overall diameter is 34.17 mm. So we can know the total area is 689.03 mm2. According to the specification, the aluminum linear mass is 349 kg/km, and the steel is 2134 kg/km. Then the total linear mass is 2134 kg/km. At the 20℃, the maximum D.C. resistance should be 0.04494Ω/km. When the power goes through the 1272 acsr bittern, the current rating is 802 A. If the specification is suitable, you can send us the inquiry. We will give you the quotation as soon as we possible.
Get the free sample Email: sales@hdcoverheadconductor.com.

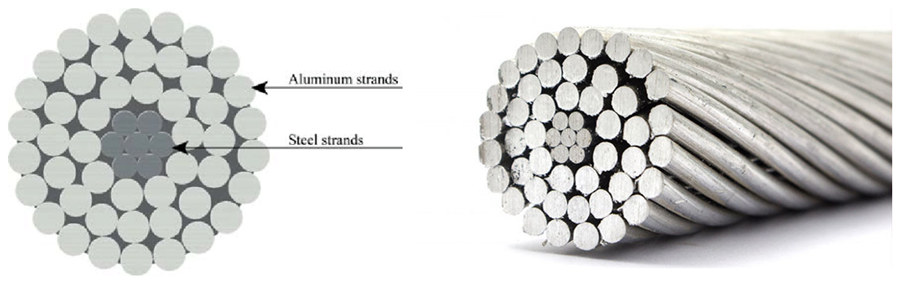

What’s bittern conductor?
Bittern conductor belongs to 1272 mcm acsr. It strands 45 aluminum with the diameter of 4.27 mm, and strands 7 steels with the diameter of 2.85 mm. The approximate overall diameter is 34.17 mm. So we can know the total area is 689.03 mm2. According to the specification, the aluminum linear mass is 349 kg/km, and the steel is 2134 kg/km. Then the total linear mass is 2134 kg/km. At the 20℃, the maximum D.C. resistance should be 0.04494Ω/km. When the power goes through the 1272 acsr bittern, the current rating is 802 A. If the specification is suitable, you can send us the inquiry. We will give you the quotation as soon as we possible.
Get the free sample Email: sales@hdcoverheadconductor.com
What’s pheasant conductor?
1272 mcm acsr pheasant has very close data about current rating and maximum D.C. resistance with other 1272 acsr. They are 802 A and 0.4516Ω/km. It strands 54 aluminum and 19 steels. Their diameters are 3.90 mm and 2.34 mm. Its overall diameter is approximately 34.17 mm. According to the standard, the total linear mass should be 2433 kg/km. The specification is not only for the manufacturers, but also the buyers. You can know if the pheasant conductor is good. Huadong adhere to the standard’s requirement, you can send your inquiry free.
Get the free sample Email: sales@hdcoverheadconductor.com
What’s skylark conductor?
1272 mcm acsr skylark strands 36 aluminum and 1 steel. Their diameters are all 4.78 mm. As for other specification, I will do a simple introduction. The overall diameter is approximately 33.42 mm. When the skylark conductor is working, the current rating is 807 A. It is the same with the pheasant conductor. The other specifications are very close with the other 1272 ascr conductor. You can check our specification parameter. If the specification is suitable, you can send us get the best price.
Get the free sample Email: sales@hdcoverheadconductor.com
Why choose us?
Huadong has our own factory. We have the ability to produce the high-quality 1272 acsr conductor, and we have the strict inspection.
Get the free sample Email: sales@hdcoverheadconductor.com
Customer case:
Huadong has over 15 years of export experience. We export many countries, such as, Middle East, Africa, Asia, Oceania, South American, North America and so on. You can also visit our factory. Get the address now: sales@hdcoverheadconductor.com.
