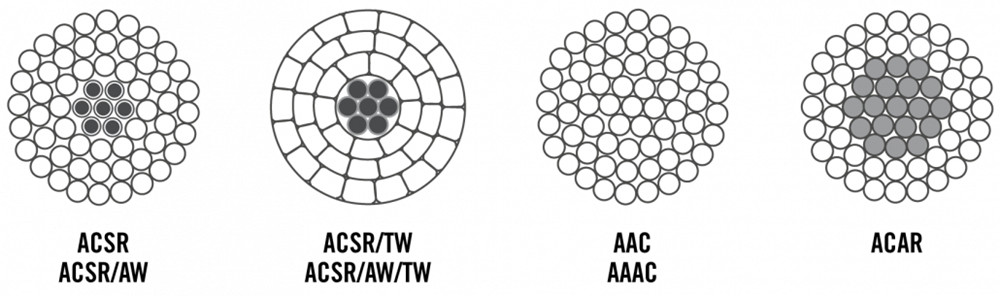

According to the overhead conductor material, it can divide into as follow: All Aluminum Conductor(AAC), Aluminum Conductor Steel Reinforced(ACSR), All Aluminum Alloy Conductor(AAAC), Anti-corrosion Aluminum Conductor Steel Reinforced, Aluminum Alloy Conductor Steel Reinforced(AACSR), Aluminum Conductor Aluminum Alloy Reinforced(ACAR), Aluminum Conductor Aluminum Clad Steel Reinforced(ACSR/AW), Aluminum Clad Steel Conductor(ACS). HDC is one of the biggest overhead power lines manufacturers. We can produce the overhead conductor according to ASTM B232, BS 215, DIN 48204, IEC 61089, JIS C3110-78, NF C34-120 standards. Please leave the overhead conductor type and size you need, we will send best overhead power lines price as soon as possible.
What kind of overhead conductor do you need?

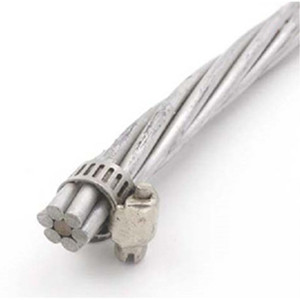

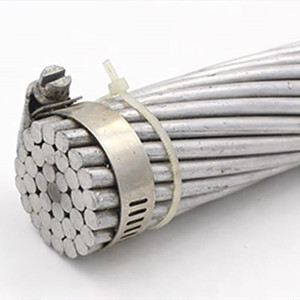

Bare conductor(AAC, AAAC, ACSR, ACAR, ACS)are used as overhead power lines, transmission lines, and distribution lines. However, different conductor materials are suitable for different span lengths and the ability to withstand breaking strength. For example, all aluminum conductors (AAC) have excellent corrosion resistance, it is also popular in coastal areas. Because the bare conductor wire doesn’t have the insulation, any jacket or sheath, the overhead conductor is very light. That means the transmission line conductor cost is much lower.
What’s more, compared with AAC, AAAC conductor has better strength and weight. In addition, this all aluminum alloy conductor owns better electrical and tensile properties. And the corrosion resistance of bare AAAC all aluminum alloy conductor is also excellent. Therefore, these characteristics make AAAC overhead power lines widely recognized in power distribution and medium and high voltage transmission lines. But ACSR conductor application is also very wide. In fact, the aluminum conductor steel reinforced wire is suitable for transmission lines of various voltage levels. What type overhead bare conductor do you need? Please leave the overhead conductor sizes and quantity you, we will supply best overhead bare conductor price as soon as possible. Email: sales@hdcoverheadconductor.com
What about bare overhead power line application?

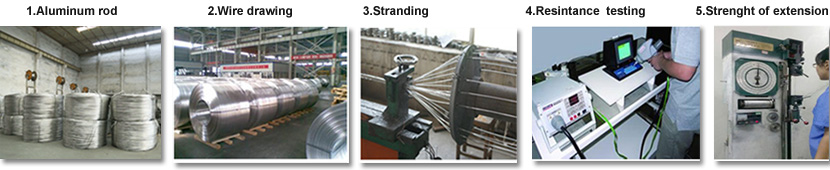

The bare conductor wire is an indispensable part in the cable. Expect from optical cable, all kinds of cable needs a conductor. Meanwhile, transmission overhead conductor itself is a finished product. They can use in many occasion, so the demand for bare conductor wire is very great. The market is very big. Owing to the simple producing process, whatever the big factory or small plant, they all can produce the overhead power line. So you must be careful when you are choosing overhead bare conductor suppliers. In fact, the professional overhead conductor manufacturers always strictly produce the overhead power line as internal standards. HDC is a reliable bare conductor manufacturer in China, we own factory and excellent technical staff. Just leave the overhead bare conductor types and sizes you really need. Email: sales@hdcoverheadconductor.com
In the early rapid developing of societies, every countries pay more attention to the power generation rather than transmission line conductor. We think generate power can help the development of the country. In that period, bear conductor is not very popular. As the development of society, power transportation needs make transmission conductor very popular. It plays a very important role in the whole conductor. You can contact us to get the new quotation. We promise to give the best overhead conductor price. Email: sales@hdcoverheadconductor.com
AAC-ASTM
Technical characteristics / U.S.A Sizes-ASTMB231
Code Name
Total Area
Stranding and wire diameter
Approximate Overall Diameter
Linear Mass
Nominal breaking Load
Maximum Resistance at 20 ℃
Current Rating
AWG or MCM
mm 2
mm
mm
Kg/km
daN
Ω/km
A
Peachbell
6
13.29
7/1.554
4.67
37
249
2.1692
72
Rose
4
21.16
7/1.961
5.89
58
396
1.3624
104
Iris
2
33.61
7/2.474
AAC-ASTM
93
597
0.8577
136
Pansy
1
42.39
7/2.776
8.33
117
732
0.6801
157
Poppy
1/0
53.48
7/3.119
9.36
147
873
0.539
180
Aster
2/0
67.42
7/3.503
10.51
186
1100
0.4276
207
Phlox
3/0
85.03
7/3.932
11.8
234
1347
0.339
237
Oxlip
4/0
107.23
7/4.417
13.26
296
1698
0.2688
273
Valerian
250
126.71
19/2.913
14.57
349
2062
0.2275
305
Sneezewort
250
126.71
7/4.80
14.4
349
2007
0.2275
300
Laurel
266.8
135.16
19/3.01
15.05
373
2200
0.2133
317
Daisy
266.8
135.16
7/4.96
14.9
373
2141
0.2133
313
Peony
300
152
19/3.193
15.97
419
2403
0.1896
340
Tulip
336.4
170.45
19/3.381
16.91
470
2695
0.1691
364
Daffodil
350
177.35
19/3.447
17.24
489
2804
0.1625
373
Canna
397.5
201.42
19/3.673
18.36
555
3184
0.1431
401
Goldentuft
450
228
19/3.909
19.55
629
3499
0.1264
432
Syringa
477
241.68
37/3.882
20.19
666
3849
0.1193
449
Cosmos
477
241.68
19/4.023
20.12
666
3708
0.1193
447
Hyacinth
500
253.35
37/2.951
20.65
698
4035
0.1138
461
Zinnia
500
253.35
19/4.12
20.6
698
3888
0.1138
459
Dahlia
556.5
282
19/4.346
21.73
777
4327
0.1022
489
Mistletoe
556.5
282
37/3.114
21.79
777
4362
0.1022
493
Meadowsweet
600
304
37/3.233
22.63
838
4703
0.0948
513
Orchid
636
322.25
37/3.33
23.31
888
4985
0.0894
531
Heuchera
650
329.4
37/3.37
23.59
907.4
5170
0.0875
538
Flag
700
54.71
61/2.72
24.48
978
5146
0.0813
563
Verbena
700
354.71
37/3.493
24.45
978
5487
0.0813
562
Nasturtium
715.5
362.58
61/2.75
24.76
1000
5874
0.0795
570
Violet
715.5
362.58
37/3.533
24.74
1000
5609
0.0795
570
Cattail
750
380
61/2.817
25.35
1048
5985
0.0759
586
Petunia
750
380
37/3.617
25.32
1048
5875
0.0759
585
Lilac
795
402.84
61/2. 90
26.11
1111
6345
0.0715
607
Arbutus
795
402.84
37/3.724
26.06
1111
6232
0.0715
605
Snapdragon
900
456.06
61/3.086
27.78
1257
6978
0.0632
653
Cockscomb
900
456.06
37/3.962
27.73
1257
6848
0.0632
651
Goldenrod
954
483.42
61/3.177
28.6
1333
7896
0.0596
675
Magnolia
954
483.42
37/4.079
28.55
1333
7258
0.0596
674
Camellia
1000
506.71
61/3.251
29.36
1397
7753
0.0569
693
Hawkweed
1000
506.71
37/4.176
29.23
1397
7608
0.0569
693
Larkspur
1033.5
523.68
61/3.307
29.76
1444
8012
0.055
707
Bluebell
1033.5
523.68
37/4.244
29.723
1444
7863
0.055
706
Marigold
1113
563.93
61/3.432
30.89
1555
8628
0.0511
738
Hawthorn
1192.5
604.26
61/3.551
31.05
1666
9245
0.0477
767
Narcissus
1272
644.51
61/3.668
33.02
1777
9861
0.0477
797
Columbine
1351.5
684.84
61/3.78
34.01
1888
10478
0.0421
825
Carnation
1431
725.1
61/389
35.03
1999
10768
0.0398
854
Gladiolus
1510.5
765.35
61/4.00
35.09
2110
11365
0.0376
881
Coreopsis
1590
805.68
61/4.099
36.51
2221
11964
0.0358
907
Jessamine
1750
886.71
61/4.302
38.73
2445
13168
0.0325
959
Cowslip
2000
1013.42
91/3.76
41.4
2791
15300
0.0285
1035
Sagebrush
2250
1140
91/3.99
43.89
3166
16700
0.0255
1108
Lupine
2500
1266.67
91/4.21
46.3
3524
18700
0.023
1178
Bitterroot
2750
1393
91/4.42
48.62
3872
20500
0.0209
1242
Trilium
3000
1520.13
127/3.90
50.75
4232
22500
0.0192
1308
Blue Bonnet
3500
1773.5
127/4.21
54.8
4985
26200
0.0166
1425
Starting custom your ideal size, the factory price will send you in 12 hours.
The best place to purchase overhead bare conductor wire
The simple producing process and huge demand market make overhead conduct more popular. So you can find lots of overhead conductor suppliers all over the world. What’s more, competition makes the transmission line conductor price get low. However, if there are many processes can cut the bare conductor cost, it may influence the transmission conductor. So when you choose the bare conductor wire, the overhead conductor price is important, but it is not the most important. Because the overhead power line quality is also necessary factor to consider. Email: sales@hdcoverheadconductor.com
Among all overhead line conductor suppliers, Huadong Cable Group is very famous. We have produced the overhead bare conductor wire for twenty years. What’s more, you needn’t worry about the delivery date, we can finish overhead aluminum conductor production and delivery on time. In addition, we export the bare overhead power line to many countries. That means you can get acsr dog conductor price to England, France, Croatia, America, Canada, Australia, Nigeria, South Africa, Mozambique, Togo, Yemen, Malaysia, Indonesia, Philippines, Thailand, Vietnam, Myanmar. Email: sales@hdcoverheadconductor.com
On the one hand, we have the strength and the ability to provide you the high quality transmission conductor. Although bare aac conductor wire can be produced by many conductor manufacturers, a reliable factory must be your first choice. Because you can get all aluminum conductor factory price from a direct manufacturer. What’s more, from the bare overhead power line price list, you can find HDC 477mcm acsr hawk conductor price is very reasonable. Please leave the transmission line conductor sizes, we send you quotations and specifications. Email:sales@hdcoverheadconductor.com
