What are 336 acsr and 336.4 mcm acsr conductor?
The specification of 336 mcm acsr is actually the same with 336.4 mcm acsr conductor. Some customer may search 336.4 acsr for convenient. So now I will simply introduce the 336.4 mcm acsr conductor. So if you are searching 336 acsr, you can see if the 336.4 mcm acsr conductor is suitable. If you have other problems, you can contact us now. Email: sales@hdcoverheadconductor.com.
336 acsr and 336.4 mcm acsr conductor parameter:
| Code name | Merlin | Linnet | Oriole | ||
|---|---|---|---|---|---|
| Area | Aluminum | AWG or MCM | 336.4 | 336.4 | 336.4 |
| mm 2 | 170.45 | 170.45 | 170.45 | ||
| Steel | mm 2 | 9.48 | 27.81 | 39.81 | |
| Total | mm 2 | 179.93 | 198.26 | 210.26 | |
| Stranding and diameter | Aluminum | mm | 18/3.47 | 26/2.89 | 30/2.69 |
| Steel | mm | 1/3.47 | 7/2.25 | 7/2.69 | |
| Approximate overall diameter | mm | 17.35 | 18.31 | 18.83 | |
| Linear mass | Aluminum | kg/km | 470 | 472 | 473 |
| Steel | kg/km | 74 | 217 | 311 | |
| Total. | kg/km | 544 | 689 | 784 | |
| Rated tensile strength | daN | 3823 | 6271 | 7745 | |
| Maximum D.C. Resistance at 20 ℃ Ω/km | 0.1691 | 0.1699 | 0.1704 | ||
| Cuttent Rating | A | 386 | 371 | 372 |
Get the free sample: sales@hdcoverheadconductor.com.

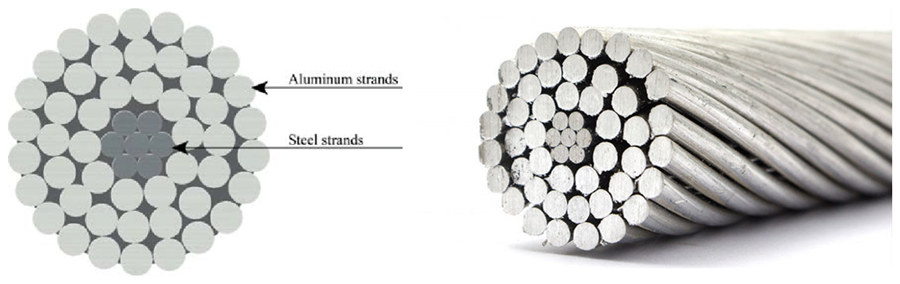

336.4 acsr belongs to ACSR-ASTM-B232. It mainly contains three types cable. They are merlin conductor, linnet conductor and oriole conductor. Their aluminum area is 170.45 mm2. Now I will introduce you their simply specification. The merlin conductor strands 18 aluminum and 1 steels. Their diameter is the same. They are 3.47 mm. Linnet conductor strands 26 aluminum and 7 steels. Their diameters are 2.89 mm and 2.25 mm. Oriole conductor strands 30 aluminum and 7 steels. Their diameters also are the same, and they are 2.69 mm. These are the simple specification. If you are searching the cable acsr 336, you can send the inquiry now.
How should we do in the using of 336 acsr?
In the using of 336 mcm acsr, there may be many questions. The water seepage is a very important problem. Now I will introduce the reason of water seepage. There are plastic seals on the both end of 336 acsr. If the seal is broken, it may cause the water seepage. If the cable acsr 336 is exposed in the air too long, and it is without seal, it will also have this problem.For these reason, there are some ways to prevent these problems.
First, in case of getting water, the ends of 336 acsr conductor should be seals strictly. Second, after installation, you should make conductor head as soon as possible. The conductor head will be the important factor to influence the service life.
These are some basic situation of 336.4 acsr. We also can produce other conductor. What’s more, we can customize for you. So the only thing is to know your wanted specification. If you send the specification, we can provide you the best price. Email: sales@hdcoverheadconductor.com.
