ACSR Moose Conductor with Low Price

ACSR Moose Conductor
ACSR Moose Conductor

What’s the moose conductor?

ACSR moose conductor is one of the specification of aluminum conductor steel reinforced. It is the code name of ACSR-BS215 standards. Its nominal aluminum area is 500 mm2. ACSR moose compose of 54 aluminum and 7 steels. Their diameters are both 3.53 mm. Then the overall diameter is 31.77 mm. We can know the total sectional area is 597.20 mm2. After final cabling, the total linear mass should be 1999 kg/km. Expect from these basic acsr moose conductor specification, there are some professional data. For example, the calculated D.C resistance is 0.547 Ω/km at ℃. Calculated breading load is 16110 daN. When the moose conductors are working, the current rating is 763 A. From these acsr moose conductor specification, we can not only know if we want, but also we can do some simple test. Email: sales@hdcoverheadconductor.com.

ACSR Moose Conductor Parameter:

Code name  Moose
Nominal aluminum area mm 2500
Stranding structureAl. No.54
Al. Dia.3.53
St. No.7
St. Dia3.53
Sectional area of aluminum mm 2528.7
Total sectional area mm 2597.2
Overall diameter mm31.77
Totalkg/km 1999
Calculated breaking load daN16110
Calculate D.C resistance at 20 ℃ Ω/km0.0547
Current RatingA763

Click here to get the free sample. Email: sales@hdcoverheadconductor.com.

How to get the high-quality acsr moose conductor?

As we all know, the production process of acsr moose conductor has its own features. It refers to many production processes. Such as the wire drawing, welding metal forming process and so on. The material of producing quad moose conductor is very huge, whatever the kinds, specifications or species. So for the material, huadong has strictly arrangement. We will approve the material and its using. As for the waste, it is an important job. We pay attention to the decomposition treatment, recycling and reuse. Of course, we strictly adhere to the production requirement. You can come and visit our factory to see the production process. If you leave your message, we will send you the accurate address.

the professional acsr moose conductor manufacturer with high quality

Expect the strict arrangement, the equipment is also very important. Because the production of moose conductors is a continuous and superimposed process. For fitting these production requirement, there are special equipment. Such as drawing machine series, stranding machine series and so on. The quality of machine will influence the quality of quad moose conductor. Huadong cable adopt advanced equipment. In the past, our factory has 20 sets production lines and 30 sets testing machines. This year, we build a new factory, and purchase more advanced equipment. So we can produce more high-quality moose conductor. You can never worry about the quality. Large production can guarantee the delivery date. So if you want to buy acsr moose conductor, we can delivery within the delivery date.
Email: sales@hdcoverheadconductor.com.

What can you get from Huadong Cable Group?

the acsr moose testing and packing and delivery

Our mission is to supply quality products with competitive price. If you buy acsr moose from us, you can not only get the high quality production, you can get the a very preferential price. It may be lower than other manufacturers in the acsr moose conductor price list. Our principles are quality first, customer first, safety first. We want to achieve equal and mutual benefits. So we want to provide you the better service and Faster delivery.

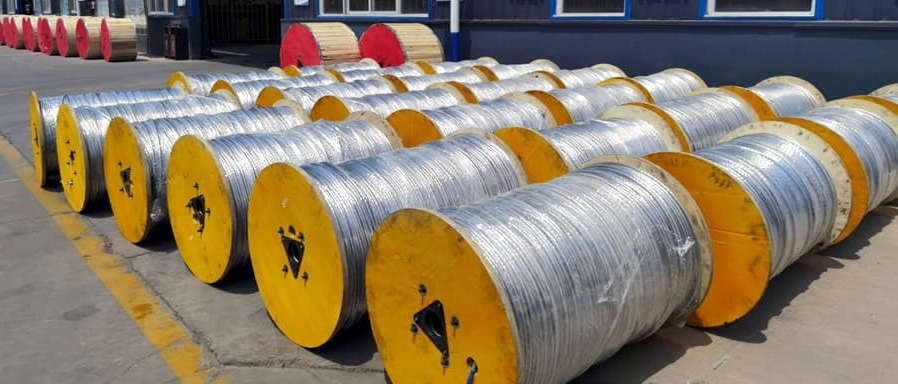

storage of acsr moose conductor

ACSR moose conductor is just one type of acsr conductor. If the acsr moose conductor specification isn’t suitable for you. You can select your wanted conductor. Of course, you can provide your specification, we can produce for you. As long as you have the specification, we can customize for you.
Email: sales@hdcoverheadconductor.com.

What’s our advantages?

acsr moose conductor factoryacsr moose conductor customer vsiting

Huadong Cable Group is one of the biggest professional aac conductor manufacturers. We owns our factory, which has advanced equipment and skilled workers. So we can not only delivery product on time, but also promis the quality of aac conductor. Huadong Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. You can visit our factory to see our factory or get the free sample: sales@hdcoverheadconductor.com.
