795 ACSR Drake Conductor with Low Price

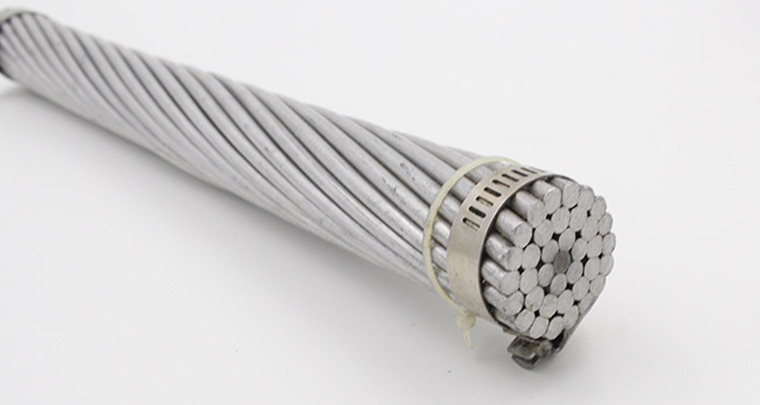

ACSR Drake Conductor
ACSR Drake Conductor

What’s the drake conductor?

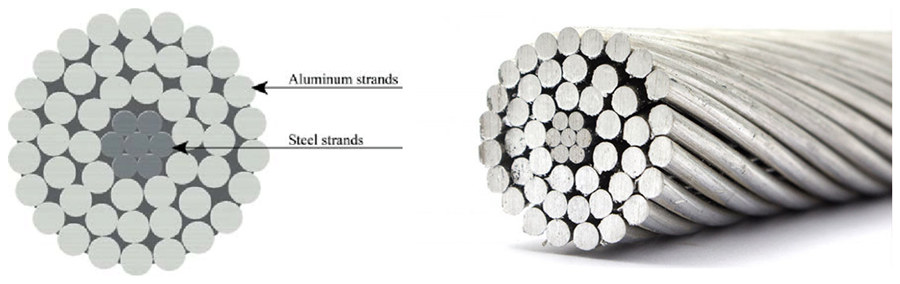

ACSR drake conductor belongs to ACSR-ASTM-B232 standard. According to the standard, the aluminum area is 402.84 mm2, and the steel area is 65.51 mm2. So we can get the total area is 468.45 mm2. ACSR drake conductor strands 26 aluminum and 7 steels. The diameter of aluminum is 4.44 mm, and the diameter of steel is 3.45 mm. Then approximate overall diameter is 28.11 mm. In general, the linear mass of aluminum is 1116 kg/km, and the steel is 518 kg/km. The final total linear mass of acsr drake is 1628 kg/km. When the acsr conductor is working, the current rating is 614 A. From the test, the maximum D.C. resistance is 0.07191 Ω/km. Standard rated tensile strength is 13992 daN. Email: sales@hdcoverheadconductor.com

ACSR Drake Conductor Parameter:

Code name  Drake
Total AreaAluminummm 2402.84
Steelmm 265.51
Totalmm 2468.45
Stranding and diameterAluminummm26/4.44
Steelmm7/3.45
Approximate overall diametermm28.11
Linear massAluminumkg/km1116
Steelkg/km518
Total.kg/km1628
Rated tensile strengthdaN13992
Maximum D.C. Resistance at 20 ℃ Ω/km0.07191
Cuttent RatingA614

These are some basic acsr drake conductor specifications, you can refer to your requirement. If it is what you want, you can contact us, and we will quote for you within 12 hours. If it isn’t, you can also send us your requirement, we can customize for you with a cheap price.

Email: sales@hdcoverheadconductor.com

What’s the application of acsr drake?

acsr drake conductor application

ACSR drake owns very simple structure. So it may be very easy to maintenance. The main raw material of it is aluminum. As we all know, the productivity of aluminum is just lower than silver and copper. But it is the cheapest among them. So the aluminum has the low price and high transport power. Steel has strong strength. So the acsr drake conductor is suitable for the special geographical conditions, such as, rivers, valleys and so on. Because of the strong strength, it is suitable to cover extra-long spans with fewer support.

The application of drake conductor is very widely. You can combine the acsr drake conductor specifications and application, and you can know if you are searching. Send the inquiry, you can get the best price now. Email: sales@hdcoverheadconductor.com.

Why choose us?

acsr drake producing

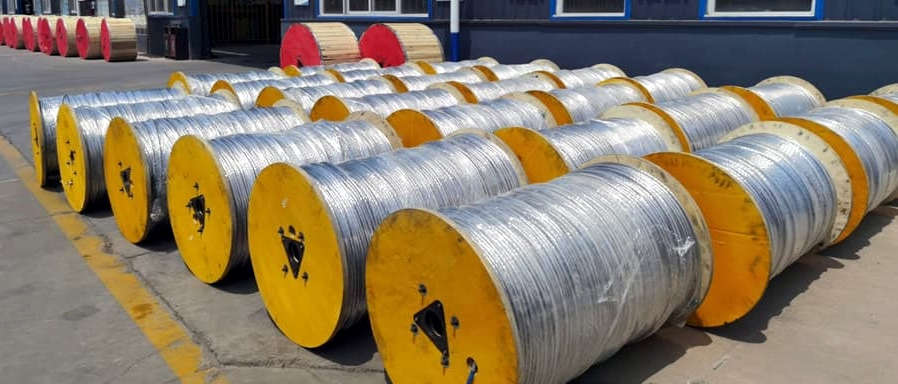

testing and packaging of acsr drake conductor

Huadong Cable Group is one of the biggest professional aac conductor manufacturers. We owns our factory, which has advanced equipment and skilled workers. So we can not only delivery product on time, but also promis the quality of aac conductor. You can also visit our factory.
Email: sales@hdcoverheadconductor.com.

What’s our advantage?

our factory

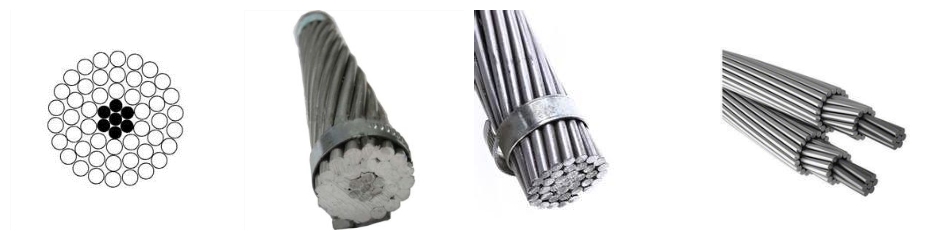

acsr drake custommer case

Huadong Cable Group is one of the biggest professional aac conductor manufacturers. We owns our factory, which has advanced equipment and skilled workers. So we can not only delivery product on time, but also promis the quality of aac conductor. Huadong Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. You can visit our factory to see our factory or get the free sample: sales@hdcoverheadconductor.com.
