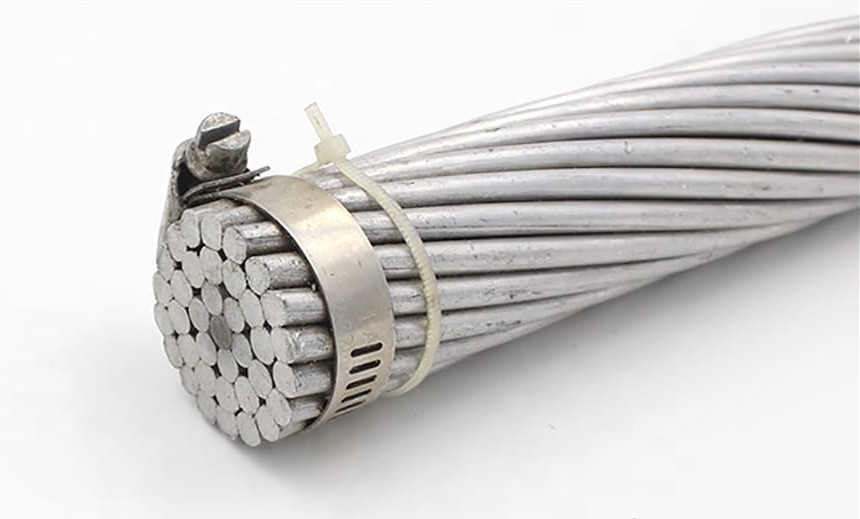

What’s the wolf conductor?

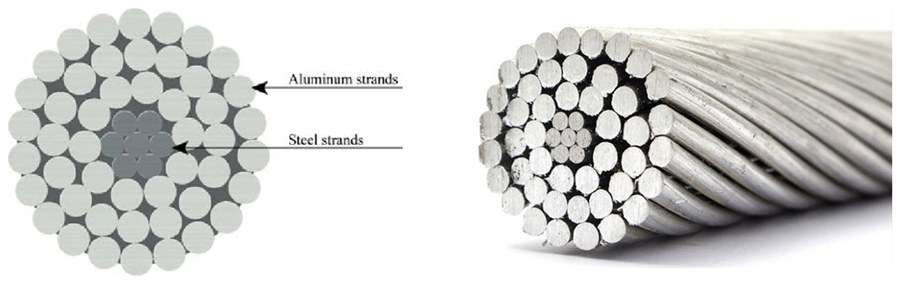

ACSR wolf conductor is one of the aluminum conductor steel reinforced. It belongs to ACSR-BS215 standards. In general, it strands 30 aluminum and 7 steels. The same as other BS215 conductor, the diameter of them is also same. They are 2.59 mm. So we can know the overall diameter is 18.13 mm. The standard nominal aluminum area is 150 mm2. In view of some errors in the production, the actual sectional area may be 158.10. It is a very reasonable data. Then total sectional area is 194.90 mm2. From the calculation, the total linear mass should be 726 kg/km. After the cabling, the calculated breaking should be 6920 daN. When the power goes through acsr wolf conductor, the current rating is 355 A. At 20℃, the calculate D.C. resistance is 0.1828 Ω/km. This is the basic wolf conductor size. If it is suitable to your requirement, just contact us. Email: sales@hdcoverheadconductor.com.

ACSR Wolf Conductor Parameter:

Code name  Wolf
Nominal aluminum area mm 2150
Stranding structureAl. No.30
Al. Dia.2.59
St. No.7
St. Dia2.59
Sectional area of aluminum mm 2158.1
Total sectional area mm 2194.9
Overall diameter mm18.13
Totalkg/km 726
Calculated breaking load daN6920
Calculate D.C resistance at 20 ℃ Ω/km0.1828
Current RatingA355

Get the free sample. Email: sales@hdcoverheadconductor.com.

What should you know in the using acsr wolf conductor?

We may miss many problems in the using of production. Now I will tell about heating of acsr wolf conductor. The heating is a normal performance, but if it is higher than the normal temperature. There will be cause problems. So when you find the abnormal heating, you should find the reason out. There may be several reason. For example, the resistance of wolf conductor isn’t suitable the standards. As we all know, the calculate D.C. resistance is 0.1828 Ω/km at t 20℃. If the real data is wrong, it may cause heating. So when you buy it, you should be careful. Then the unqualified conductor may cause heating. If the core conductor area is too small, it can’t load enough power. it also cause the overload and get heating. The installing is also a problem. The installation should be reasonable.

the using of wolf conductor

These reasons all may cause heating. From these reason, we can know the quality of wolf conductor is a very important reason, so you should find a very reliable manufacturer. Huadong cable has 15 years of export experience, so we will be your good choice.  Email: sales@hdcoverheadconductor.com.

Why choose us?

wolf conductor producing process

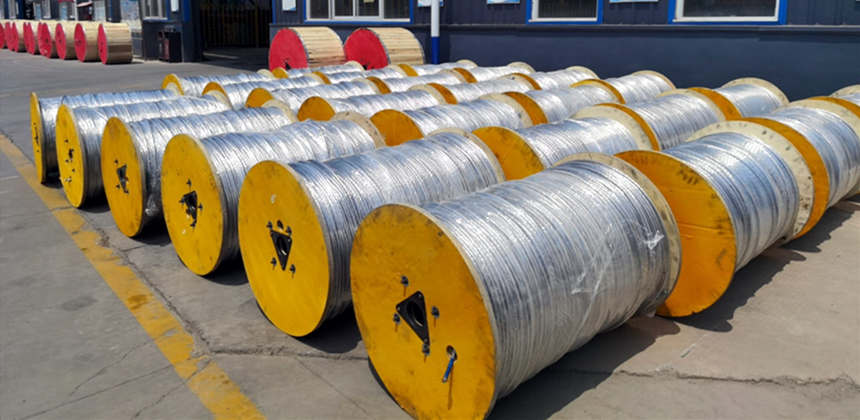

the storage of wolf conductor

Whatever the producing, testing, storage and delivery of wolf conductor, we strictly adhere to the standards. You can visit us toe see the exactly environment. Get the address and free  sample:
sales@hdcoverheadconductor.com.

Customer Case

wolf conductor customer caseswolf conductor customer visiting

Huadong Cable Group owns 15 years of export experience. We export to many countries in the Middle Est, Africa, Asia Oceania, South America, North America and so on. You can visit our factory to see our factory or get the free sample: sales@hdcoverheadconductor.com.
