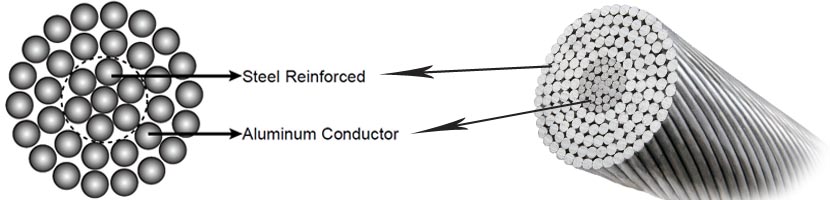

Aluminum conductor steel reinforced consists of steel and aluminum. The ACSR conductor is mainly used in the power industry. Generally speaking, we can apply acsr conductor as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. Huadong Cable Group is a professional acsr conductor manufacturer. We have exported our acsr aluminum conductor steel reinforced cable to many countries. So if you need acsr conductor cost to Philippines, Myanmar or Brazil, just leave your message.

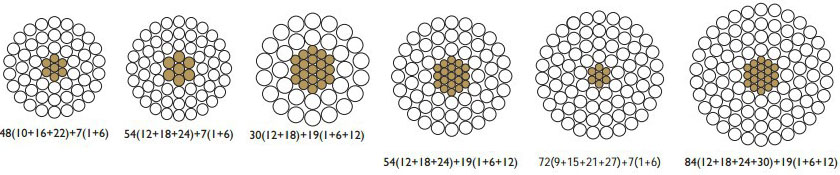

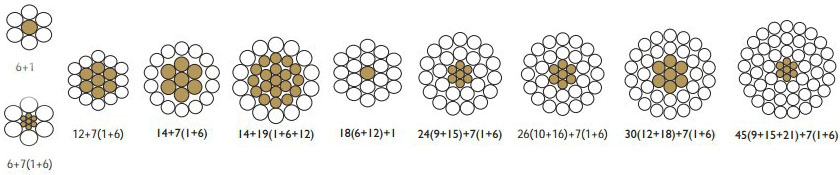

ACSR – Aluminum Conductor Steel Reinforced Sizes and Standards
In the acsr conductor catalog, you can find lots of aluminum conductor steel reinforced sizes. These acsr conductor types and standards are not the same. For example, raccoon conductor is the BS215 standard. It strands 6 aluminum with the diameter of 4.10mm around the 1 steel with the same diameter. What’s more, the 75 mm2 raccoon conductor D.C resistance is 20 Ω/km, and current rating is 231 A. Besides, raccoon conductor is just one of acsr conductor specifications according to BS standard. In this standard, we also have cheap acsr dog conductor for sale. If you want to know more information about acsr raccoon conductor price, just send your inquiry.
However, ACSR hawk belongs to ASTM-B232 standard. Hawk conductor is one of 26/7 aluminum conductor steel reinforced cable. It strands 26 aluminum with the diameter of 3.44 and 7 steels with diameter of 2.67 mm. The overall diameter is approximately 21.79mm. In addition, the rated tensile strength of this 477 hawk conductor is 8665 daN, maximum D.C. Resistance is 0.11990Ω/km at 20℃. Above is something about hawk conductor size and specification. If you are looking for ASTM acsr conductors, just leave the aluminum conductor steel reinforced sizes. Then we will provide best acsr conductor price list to you.
Technical characteristics / U.S.A Sizes - ASTM B232
Code name Area Stranding and diameter Approximate overall diameter Linear mass Rated tensile strength Maximum D.C. Resistance at 20 ℃ Ω/km Cuttent Rating
Aluminum Steel Total Aluminum Steel Aluminum Steel Total.
AWG or MCM mm 2 mm 2 mm 2 mm mm mm kg/km kg/km kg/km daN A
wren 8 8.34 1.39 9.73 6/1.33 1/1.33 3.99 22.9 10.8 33.7 308 3.43035 63
Turkey 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 524 2.1586 78
Swan 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 832 1.3557 105
Swante 4 21.16 5.35 26.5 7/1.96 1/2.61 6.53 58 42 100 1053 1.3557 104
Swallow 3 26.69 4.45 31.14 6/2.38 1/2.38 7.14 73.3 34.6 107.9 1021 1.07124 129
Sparrow 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 1270 0.8535 139
Sparate 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 1611 0.8535 138
Robin 1 42.39 7.1 49.49 6/3.00 1/3.00 9 116 55 171 1585 0.6767 160
Raven 0 53.48 8.9 62.38 6/3.37 1/3.37 10.11 147 69 216 1932 0.5364 183
Quail 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 2362 0.4255 210
Pigeon 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 2941 0.3373 241
Penguin 4/0 107.23 17.87 125.1 6/4.77 1/4.77 14.31 294 139 433 3706 0.2675 276
Waxwing 266.8 135.16 7.48 142.64 18/3.09 1/3.09 15.45 373 58 431 3027 0.2133 319
Partridge 266.8 135.16 22 157.16 26/2.57 7/2.00 16.28 374 172 546 5029 0.2143 323
Ostrich 300 152 24.71 176.71 26/2.73 7/2.12 17.28 421 193 614 5652 0.1906 346
Merlin 336.4 170.45 9.48 179.93 18/3.47 1/3.47 17.35 470 74 544 3823 0.1691 386
Linnet 336.4 170.45 27.81 198.26 26/2.89 7/2.25 18.31 472 217 689 6271 0.1699 371
Oriole 336.4 170.45 39.81 210.26 30/2.69 7/2.69 18.83 473 311 784 7745 0.1704 372
Chickadee 397.5 201.42 11. 16 212.58 18/3.77 1/3.77 18.85 555 87 642 4399 0.1431 403
Brant 397.5 201.42 26.13 227.55 24/3.27 7/2.18 19.61 558 204 762 6469 0.1438 405
Ibis 397.5 201.42 32.77 234.19 26/3.14 7/2.44 19.88 558 256 814 7211 0.1438 403
Lark 397.5 201.42 46.97 248.39 30/2.92 7/2.92 20.44 560 367 927 8869 0.1442 410
Pelican 477 241.68 13.42 255.1 18/4.12 1/4.14 20.7 666 105 771 5216 0.1193 449
Flicker 477 241.68 31.29 272.97 24/3.58 7/2.39 21.49 670 245 915 7666 0.1199 454
Hawk 477 241.68 39.42 281.1 26/3.44 7/2.67 21.79 670 308 978 8665 0.1199 455
Hen 477 241.68 56.39 298.07 30/3.20 7/3.20 22.4 671 441 1112 10534 0.1201 457
Osprey 556.5 282 15.68 297.68 18/4.47 1/4.47 22.35 777 122 899 6088 0.1022 492
Parakeet 556.5 282 36.58 318.58 24/3.87 7/2.58 23.22 781 286 1067 8822 0.1027 492
Dove 556.5 282 45.94 327.94 26/3.72 7/2.89 23.55 781 359 1140 10103 0.1027 499
Eagle 556.5 282 65.81 347.81 30/3.46 7/3.46 24.21 783 515 1298 13392 0.103 500
Peacock 605 306.58 39.74 346.32 24/4.03 7/2.69 24.2 849 311 1160 9588 0.0945 522
Squab 605 306.58 49.94 356.52 26/3.87 7/3.01 24.51 850 390 1240 10841 0.0945 523
Wood duck 605 306.58 71.55 378.13 30/3.16 7/3.61 25.25 851 560 1411 12884 0.0947 523
Teal 605 306.58 69.87 376.45 30/3.61 19/2.16 25.24 851 548 1399 13359 0.0947 527
Kingbird 636 322.26 17.9 340.16 18/4.78 1/4.78 23.88 889 139 1028 6956 0.08945 530
Rook 636 322.26 41.81 364.07 24/4.14 7/2.76 24.84 893 326 1219 10083 0.08989 537
Grosbeak 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 11180 0.08989 538
Scoter 636 322.26 75.22 394.48 30/3.70 7/3.70 25.88 895 589 1484 13544 0.09011 541
Egret 636 322.26 73.55 395.81 30/3.70 19/2.22 25.9 894 576 1470 14055 0.09011 542
Swift 636 322.26 8.96 331.22 36/3.38 1/3.38 23.62 888 70 958 6052 0.08945 545
Flamingo 666.6 337.74 43.81 381.55 24/4.23 7/2.82 25.4 936 342 1278 10566 0.08577 552
Gannet 666.6 337.74 55.03 392.77 26/4.07 7/3.16 25.76 936 429 1365 11733 0.08577 618
Stilt 715.5 362.58 46.97 409.55 24/4.39 7/2.92 26.31 1005 367 1372 11335 0.07989 577
Starling 715.5 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1005 461 1466 12591 0.07989 578
Redwing 715.5 362.58 82.58 445.16 30/3.92 19/2.35 27.43 1006 647 1653 15394 0.08009 581
Tern 795 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1116 217 1333 9737 0.07191 610
Condor 795 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1116 408 1524 12445 0.07911 614
Cuckoo 795 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1116 408 1522 12394 0.07191 614
Drake 795 402.84 65.51 468.45 26/4.44 7/3.45 28.11 1116 518 1628 13992 0.07191 614
Coot 795 402.84 11.16 414 36/3.77 1/3.77 26.41 1110 88 1198 7485 0.07156 614
Mallard 795 402.84 91.87 484.71 30/4.14 19/2.48 28.96 1119 719 1838 17118 0.07208 618
Get a free quote by E-mail: sales@hdcoverheadconductor.com .
ACSR Technical characteristics / BS215
Code name Nominal aluminum area mm 2 Stranding structure Sectional area of aluminum Total sectional area Overall diameter Calculated breaking load Calculate D.C resistance at 20 ℃ Current Rating
Total
Al. No. Al. Dia. St. No. St. Dia mm 2 mm 2 mm kg/km daN Ω/km A
Mole 10 6 1.5 1 1.5 10.62 12.39 4.5 43 414 2.706 67
Squirrel 20 6 2.11 1 2.11 20.94 24.43 6.33 85 788 1.368 109
Gopher 25 6 2.36 1 2.36 26.24 30.62 7.08 106 961 1.093 126
Weasel 30 6 2.59 1 2.59 31.61 36.88 7.77 128 1146 0.9077 134
Fox 35 6 2.79 1 2.79 36.66 42.77 8.37 149 1320 0.7822 147
Ferret 40 6 3 1 3 42.41 49.48 9 172 1520 0.6766 161
Rabbit 50 6 3.35 1 3.35 52.88 61.7 10.05 214 1835 0.5426 185
Mink 60 6 3.66 1 3.66 63.18 73.71 10.98 255 2180 0.4545 174
Skunk 60 12 2.59 7 2.59 63.27 100.3 12.95 465 5300 0.4567 246
Beaver 70 6 3.99 1 3.99 74.82 87.29 11.97 302 2570 0.3825 193
Horse 70 12 2.79 7 2.79 73.37 116.2 13.95 538 6120 0.3936 268
Racoon 75 6 4.1 1 4.1 79.2 92.4 12.3 320 2720 0.3622 231
Otter 80 6 4.22 1 4.22 83.88 97.86 13.98 339 2880 0.3419 240
Cat 90 6 4.5 1 4.5 95.4 111.3 15.9 386 3270 0.3007 248
Hare 100 6 4.72 1 4.72 105 122.5 17.5 425 3600 0.2733 273
Dog 100 6 4.72 7 1.57 105 118.5 14.15 394 3270 0.2733 278
Hyena 100 7 4.39 7 1.93 105.8 126.2 14.57 450 4090 0.2712
Leopard 125 8 5.28 7 1.75 131.3 148.1 15.81 492 4070 0.2184
Coyote 125 26 2.54 7 1.91 132.1 152.2 15.89 522 4640 0.2187 311
Congar 125 18 3.05 1 3.05 130.3 137.5 15.25 419 2980 0.2189 314
Tiger 125 30 2.36 7 2.36 131.1 161.7 16.52 602 5800 0.2202 323
Dingo 150 18 3.35 1 3.35 158.7 167.5 16.75 506 3570 0.1815 349
Wolf 150 30 2.59 7 2.59 158.1 194.9 18.13 726 6920 0.1828 355
Caracal 175 18 3.61 1 3.61 184.3 194.5 18.05 587 4110 0.1563 383
Lynx 175 30 2.79 7 2.79 183.4 326.2 19.53 842 7980 0.1576 386
Jaguar 200 18 3.86 1 3.86 210.6 222.3 19.3 671 4655 0.1367 415
Panther 200 30 3 7 3 212.1 261.5 21 974 9225 0.1363 421
Lion 225 30 3.18 7 3.18 238.5 294.2 22.26 1095 10060 0.1212 448
Bear 250 30 3.35 7 3.35 264 325.6 23.45 1213 11110 0.1093 481
Goat 300 30 3.71 7 3.71 324.3 400 25.97 1489 13570 0.0891 542
Sheep 350 30 3.99 7 3.99 374.1 461.4 27.93 1718 15590 0.07704 592
Antilope 350 54 2.97 7 2.97 373.1 421.5 26.73 1411 11820 0.07727 588
Bizon 350 54 3 7 3 381.8 431.3 27 1444 12090 0.07573 595
Deer 400 30 4.27 7 4.27 429.3 529.5 28.89 1971 17850 0.0674 639
Zebra 400 54 3.18 7 3.18 428.9 484.5 28.62 1621 13190 0.0674 635
ELK 450 30 4.5 7 4.5 477 588.3 31.5 2190 19820 0.06056 679
Camel 450 54 3.35 7 3.35 475.2 536.8 30.15 1777 14570 0.06073 677
Moose 500 54 3.53 7 3.53 528.7 597.2 31.77 1999 16110 0.0547 763
Finch 500 54 3.65 19 2.29 564.7 642.9 33.35 2243 18070 0.0512 815
Get a free quote by E-mail:sales@hdcoverheadconductor.com .
Technical characteristics of ACSR-Canadian
Code name Total Area Stranding and diameter Approximate overall diameter Linear mass Rated tensile strength Maximum D.C. Resistance at 20 ℃ Ω/km Cuttent Rating
Aluminum Steel Total Aluminum Steel Aluminum Steel Total.
mm 2 mm 2 mm 2 mm mm mm kg/km kg/km kg/km daN A
wren 8.34 1.39 9.73 6/1.33 1/1.33 3.99 22.9 10.8 33.7 308 3.43035 63
Warbler 10.59 1.34 11.93 6/1.5 1/1.50 4.5 29 14 43 420 2.7139 67
Turkey 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54 524 2.1586 78
Swan 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85 832 1.3557 105
Swante 21.16 5.35 26.5 7/1.96 1/2.61 6.53 58 42 100 1053 1.3557 104
Swallow 26.69 4.45 31.14 6/2.38 1/2.38 7.14 73.3 34.6 107.9 1021 1.07124 126
Sparrow 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136 1270 0.8535 139
Sparate 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159 1611 0.8535 138
Robin 42.39 7.1 49.49 6/3.00 1/3.00 9 116 55 171 1585 0.6767 160
Raven 53.48 8.9 62.38 6/3.37 1/3.37 10.11 147 69 216 1932 0.5364 183
Quail 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273 2362 0.4255 210
Pigeon 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343 2941 0.3373 241
Penguin 107.23 17.87 125.1 6/4.77 1/4.77 14.31 294 139 433 3706 0.2675 276
Waxwing 135.16 7.48 142.64 18/3.09 1/3.09 15.45 373 58 431 3027 0.2133 319
Partridge 135.16 22 157.16 26/2.57 7/2.00 16.28 374 172 546 5029 0.2143 323
Ostrich 152 24.71 176.71 26/2.73 7/2.12 17.28 421 193 614 5652 0.1906 346
Merlin 170.45 9.48 179.93 18/3.47 1/3.47 17.35 470 74 544 3823 0.1691 364
Linnet 170.45 27.81 198.26 26/2.89 7/2.25 18.31 472 217 689 6271 0.1699 371
Oriole 170.45 39.81 210.26 30/2.69 7/2.69 18.83 473 311 784 7745 0.1704 372
Chickadee 201.42 11. 16 212.58 18/3.77 1/3.77 18.85 555 87 642 4399 0.1431 403
Brant 201.42 26.13 227.55 24/3.27 7/2.18 19.61 558 204 762 6469 0.1438 405
Ibis 201.42 32.77 234.19 26/3.14 7/2.44 19.88 558 256 814 7211 0.1438 403
Lark 201.42 46.97 248.39 30/2.92 7/2.92 20.44 560 367 927 8869 0.1442 410
Pelican 241.68 13.42 255.1 18/4.12 1/4.14 20.7 666 105 771 5216 0.1193 449
Flicker 241.68 31.29 272.97 24/3.58 7/2.39 21.49 670 245 915 7666 0.1199 454
Hawk 241.68 39.42 281.1 26/3.44 7/2.67 21.79 670 308 978 8665 0.1199 455
Hen 241.68 56.39 298.07 30/3.20 7/3.20 22.4 671 441 1112 10534 0.1201 457
Osprey 282 15.68 297.68 18/4.47 1/4.47 22.35 777 122 899 6088 0.1022 492
Parakeet 282 36.58 318.58 24/3.87 7/2.58 23.22 781 286 1067 8822 0.1027 492
Dove 282 45.94 327.94 26/3.72 7/2.89 23.55 781 359 1140 10103 0.1027 499
Eagle 282 65.81 347.81 30/3.46 7/3.46 24.21 783 515 1298 13392 0.103 500
Peacock 306.58 39.74 346.32 24/4.03 7/2.69 24.2 849 311 1160 9588 0.0945 522
Squab 306.58 49.94 356.52 26/3.87 7/3.01 24.51 850 390 1240 10841 0.0945 523
Wood duck 306.58 71.55 378.13 30/3.16 7/3.61 25.25 851 560 1411 12884 0.0947 523
Teal 306.58 69.87 376.45 30/3.61 19/2.16 25.24 851 548 1399 13359 0.0947 527
Kingbird 322.26 17.9 340.16 18/4.78 1/4.78 23.88 889 139 1028 6956 0.08945 530
Rook 322.26 41.81 364.07 24/4.14 7/2.76 24.84 893 326 1219 10083 0.08989 537
Grosbeak 322.26 52.45 374.71 26/3.97 7/3.09 25.15 893 409 1302 11180 0.08989 538
Scoter 322.26 75.22 394.48 30/3.70 7/3.70 25.88 895 589 1484 13544 0.09011 541
Egret 322.26 73.55 395.81 30/3.70 19/2.22 25.9 894 576 1470 14055 0.09011 542
Swift 322.26 8.96 331.22 36/3.38 1/3.38 23.62 888 70 958 6052 0.08945 542
Flamingo 337.74 43.81 381.55 24/4.23 7/2.82 25.4 936 342 1278 10566 0.08577 552
Gannet 337.74 55.03 392.77 26/4.07 7/3.16 25.76 936 429 1365 11733 0.08577 618
Stilt 362.58 46.97 409.55 24/4.39 7/2.92 26.31 1005 367 1372 11335 0.07989 577
Starling 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1005 461 1466 12591 0.07989 578
Redwing 362.58 82.58 445.16 30/3.92 19/2.35 27.43 1006 647 1653 15394 0.08009 581
Tern 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1116 217 1333 9737 0.07191 610
Condor 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1116 408 1524 12445 0.07911 614
Cuckoo 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1116 408 1522 12394 0.07191 614
Drake 402.84 65.51 468.45 26/4.44 7/3.45 28.11 1116 518 1628 13992 0.07191 614
Coot 402.84 11.16 414 36/3.77 1/3.77 26.41 1110 88 1198 7485 0.07156 614
Mallard 402.84 91.87 484.71 30/4.14 19/2.48 28.96 1119 719 1838 17118 0.07208 618
Ruddy 456.06 31.54 487.6 45/3.59 7/2.40 28.73 1263 247 1510 10931 0.06351 656
Canary 456.06 59.1 515.16 54/3.28 7/3.28 29.52 1263 461 1724 14095 0.06351 660
Rail 483.42 33.42 516.84 45/3.70 7/2.47 29.61 1339 262 1601 11585 0.05992 679
Catbird 483.42 13.42 496. 84 36/4.14 1/4.14 28.95 1333 105 1438 8766 0.05962 679
Cardinal 483.42 62.65 546. 07 54/3.38 7/3.38 30.42 1339 490 1829 14936 0.05992 681
Ortolan 523.68 36.19 559. 87 45/3.85 7/2.57 30.81 1451 283 1734 12310 0.05331 712
Tanager 523.68 14.51 538.19 36/4.30 1/4.30 30.12 1443 113 1556 9493 0.05504 710
Curlew 523.68 67.87 591.55 54/3.52 7/3.52 31.68 1451 530 1981 16180 0.05531 715
Bluejay 563.93 39.03 602.96 45/4.00 7/2.66 31.98 1563 385 1868 13263 0.05136 743
Finch. 563.93 71.55 635.48 54/3.65 19/2.19 32.85 1570 580 2130 17441 0.05161 746
Bunting 604.26 41.55 645.81 48/4.14 7/2.76 33.12 1674 327 2001 14179 0.04793 772
Grackle 604.26 76.58 680.84 54/3.77 19/2.27 33.97 1682 600 2282 18678 0.04817 773
Bittern 644.51 44.52 689.03 45/4.27 7/2.85 34.17 1785 349 2134 15148 0.04494 802
Pheasant 644.51 81.63 726.19 54/3.90 19/2.34 35.1 1795 638 2433 19400 0.04516 807
Skylark 644.51 17.87 662.38 36/4.78 1/4.78 33.42 1777 140 1917 11585 0.04472 810
Dipper 684.84 47.1 731.94 45/4.40 7/2.92 35.16 1898 368 2266 16070 0.0423 831
Martin 684.84 88.71 771.55 54/4.02 19/2.41 36.17 1906 679 2585 20605 0.0425 835
Bobolink 725.1 50.32 775.42 45/4.53 7/3.02 36.24 2009 393 2402 17071 0.03994 859
Plover 725.1 91.87 816.97 54/4.14 19/2.48 37.24 2019 719 2738 21824 0.04013 862
Nuthatch 765.35 52.9 818.25 45/4.65 7/3.10 37.2 2120 414 2534 17789 0.03784 886
Parrot 765.35 96.84 862.19 54/4.25 19/2.55 38.25 2131 759 2890 23020 0.03802 890
Lapwing 805.68 55.48 861.16 45/4.77 7/3.18 38.16 2232 435 2667 18702 0.03595 911
Falcon 805.68 102.1 907.81 54/4.36 19/2.62 39.26 2243 799 3042 24255 0.03613 917
Chukar 902.7 73.51 902.72 84/3.70 19/2.22 40.7 2511 575 3086 22685 0.03245 975
BlueBird 1092 88.8 1092.28 84/4.07 19/2.44 44.76 3036 697 3733 26830 0.02681 1180
Kiwi 1100 47.5 1099.2 72/4.41 7/2.94 44.07 3057 370 3427 22160 0.02684 1180
Thrasher 1170.8 65.15 1170.8 76/4.43 19/2.09 45.9 3256 511 3767 25300 0.02478 1200
Grouse 40.52 14.13 54.65 8/2.54 1/4.24 9.32 112 110 222 2360 0.7115 155
Petrel 51.61 30.06 81.67 12/2.34 7/2.34 11.71 143 235 378 4715 0.5613 187
Minorca 56.13 32.77 88.9 12/2.44 7/2.44 12.22 156 256 412 5125 0.5161 197
Leghorn 68.19 39.81 108 12/2.69 7/2.69 13.46 189 311 500 6170 0.4248 221
Guinea 80.58 46.97 127.55 12/2.92 7/2.92 14.63 223 367 590 7255 0.3595 244
Dotterel 89.48 52.19 141.67 12/3.08 7/3.08 15.42 248 409 657 7850 0.3237 260
Dorking 96.71 56.39 153.1 12/3.20 7/3.20 16.03 268 441 709 8480 0.2995 272
Brahma 102.97 91.87 194.84 16/2.86 19/2.48 18.14 285 722 1007 12880 0.2813 288
Auk 102.84 92.32 195.2 8/4.05 7/2.25 14.83 282.7 217.3 500 8740 0.2789 276
Get a free quote by E-mail: sales@hdcoverheadconductor.com .
ACSR Technical characteristics / DIN 48204
Area Standing and wire diameter Overall diameter Nominal breaking load Maximum resistance at 20°C Current Rating
Nominal. Actual Total.
Al/Steel-- Al Steel Total Aluminum Steel
mm 2 mm 2 mm 2 mm mm mm kg/km daN Ω/km A
16/2.5 15 2.5 17.8 6/1.80 1/1.80 5.4 62 595 1.878 105
25/4.0 23.8 4 27.8 6/2.25 1/2.5 6.8 97 920 1.2002 140
35/6.0 34.3 5.7 40 6/2.70 1/2.70 8.1 140 1265 0.8352 170
44/32.0 44 31.7 75.7 14/2.00 7/2.40 11.2 372 4500 0.6573 220
50/8.0 48.3 8 56.3 6/3.20 1/3.20 9.6 196 1710 0.5946 210
50/30 51.2 29.8 81 12/2.33 7/2.33 11.7 378 4380 0.5643 223
70/12 69.9 11.4 81.3 26/1.85 7/1.44 11.7 284 2680 0.413 290
95/15 94.4 15.3 109.7 26/2.15 7/1.67 13.6 383 3575 0.3058 350
95/55 96.5 56.3 152.8 12/3.20 7/3.20 16 712 7935 0.2992 352
105/75 105.7 75.5 181.5 14/3.10 9/2.25 17.5 891 10845 0.2735 385
120/20 121.06 19.8 141.4 26/2.44 7/1.90 15.5 494 4565 0.2374 410
120/70 122 71.3 193.3 12/3.60 7/3.60 18 90 10000 0.2364 410
125/30 127.9 29.8 157.7 30/2.33 7/2.33 16.3 591 5760 0.2259 425
150/25 148.9 24.2 173.1 26/2.70 7/2.10 17.1 605 5525 0.1939 470
170/40 171.8 40.1 211.9 30/2.70 7/2.70 18.9 794 7675 0.1682 520
185/30 183.8 29.8 213.6 26/3.00 7/2.33 19 746 6620 0.1571 535
210/35 209.1 34.1 243.2 26/3.20 7/2.49 20.3 850 7490 0.138 590
210/50 212.1 49.5 261.6 30/3.00 7/3.00 21 981 9390 0.1362 610
230/30 230.9 29.8 260.7 24/3.50 7/2.33 21 877 7310 0.1249 630
240/40 243 39.5 282.5 26/3.45 7/2.68 21.9 987 8640 0.1188 645
265/35 263.7 34.1 297.8 24/3.74 7/2.49 22.4 1002 8305 0.1094 680
300/50 304.3 49.5 353.7 26/3.86 7/3.00 24.5 1236 10700 0.09487 740
305/40 304.6 39.5 344.1 54/2.68 7/2.68 24.1 1160 9940 0.0949 740
340/30 339.3 29.8 369.1 48/3.00 7/2.33 25 1180 9290 0.08509 790
380/50 382 49.5 431.5 54/3.00 7/3.00 27 1453 12310 0.08509 840
385/35 386 34.1 420.1 48/3.20 7/2.49 26.7 1344 10480 0.07573 850
435/55 434.03 59.3 490.6 54/3.20 7/3.20 28.8 1653 13645 0.07478 900
450/40 448.7 39.5 488.2 48/3.45 7/2.68 28.7 1561 12075 0.06656 920
490/65 490.3 63.6 553.9 54/3.40 7/3.40 30.6 1866 15310 0.06434 960
495/35 494.1 34.1 528.2 45/3.74 7/2.49 29.9 1646 12180 0.05846 968
510/45 510.2 45.3 555.5 48/3.68 7/2.87 30.7 1778 13665 0.05655 980
550/70 550 71.3 621.3 54/3.60 7/3.60 32.4 2092 17060 0.05259 1020
560/50 561.7 49.5 611.2 48/3.86 7/3.00 32.2 1954 14895 0.0514 1040
570/40 565.5 39.5 610.3 45/4.00 7/2.68 32.2 1888 13900 0.05108 1040
650/45 698.5 45.3 653.49 45/4.30 7/2.87 34.4 2163 15552 0.0442 1280
680/85 678.8 86 764.8 54/4.00 19/2.40 36 2570 21040 0.0426 1150
1045/45 1045.58 45.3 1090.9 72/4.30 7/2.87 43 3249 21787 0.0277 1570
Get a free quote by E-mail: sales@hdcoverheadconductor.com .
ACSR Technical characteristics of ACSR-IEC1089-A1S2A
Area Number of wires Wire dia. Diameter Linear Mass Rated Strength D.C. Resistance
Alum Steel Total Alum. Steel Core Cond.
mm 2 mm 2 mm 2 Al St mm mm mm mm kg/km kN Ω/km
16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.4 6.45 1.7934
25 4.17 29.2 6 1 2.3 2.3 2.3 6.91 100.9 9.71 1.1478
40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 15.33 0.7174
63 10.5 73.5 6 1 3.66 3.66 3.66 11 254.4 22.37 0.4555
100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 35.5 0.2869
125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 30.14 0.2304
125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 48.54 0.231
160 8.89 169 18 1 3.36 3.36 3.36 16.8 508.3 37.42 0.18
160 26.1 186 26 7 2.8 6.53 6.53 17.7 644.9 61.34 0.1805
200 11.1 211 18 7 3.76 3.76 3.76 18.8 636.7 45 0.144
200 32.6 233 26 1 3.13 7.3 7.3 19.8 806.2 74.69 0.1444
250 24.6 275 22 7 3.8 6.34 6.34 21.6 880.6 72.16 0.1154
250 40.7 291 26 7 3.5 8.16 8.16 22.2 1007.7 93.37 0.1155
315 21.8 337 45 7 2.99 5.97 5.97 23.9 1039.3 82.08 0.0917
315 51.3 366 26 7 3.93 9.16 9.16 24.9 1269.7 114.02 0.0917
400 27.7 428 45 7 3.36 6.73 6.73 26.9 1320.1 102. 23 0.0722
400 51.9 452 54 7 3.07 9.21 9.21 27.6 1510.3 130.3 0.0723
450 31.1 481 45 7 3.57 7.14 7.14 28.5 1485.2 111.82 0.0642
450 58.3 508 54 7 3.26 9.77 9.77 29.3 1699.1 146.58 0.0643
500 34.6 535 45 7 3.76 7.52 7.52 30.1 1650.2 124.25 0.0578
500 64.8 565 54 7 3.43 10.3 10.3 30.9 1887.9 162.87 0.0578
560 38.7 599 45 7 3.98 7.96 7.96 31.8 1848.2 139.16 0.0516
560 70.9 631 54 19 3.63 10.9 10.9 32.7 2103.4 182.52 0.0516
630 43.6 674 45 7 4.22 8.44 8.44 33.8 2079.2 156.55 0.0459
630 79.8 710 54 19 3.85 11.6 11.6 34.7 2366.3 202.94 0.0459
710 49.1 759 45 7 4.48 8.96 8.96 35.9 2343.2 176.43 0.0407
710 89.9 800 54 19 4.09 12.3 12.3 36.8 2666.8 228.71 0.0407
800 34.6 835 72 7 3.76 7.52 7.52 37.6 2480.2 172.25 0.0361
800 66.7 867 84 7 3.48 10.4 10.4 38.3 2732.7 214.67 0.0362
800 101 901 54 19 4.34 13 13 39.1 3004.9 257.71 0.0362
900 38.9 939 72 7 3.99 7.98 7.98 39.9 2790.2 193.78 0.0321
900 75 975 84 7 3.69 11.1 11.1 40.6 3074.2 231.75 0.0322
1000 43.2 1043 72 7 4.21 8.41 8.41 42.1 3100.3 215.31 0.0289
1120 47.3 1167 72 19 4.45 8.9 8.9 44.5 3464.9 241.15 0.0258
1120 91.2 1211 84 19 4.12 12.4 12.4 45.3 3811.5 295.94 0.0258
1250 52.8 1303 72 19 4.7 9.4 9.4 47 3867.1 269.14 0.0231
1250 102 1352 84 19 4.35 13.1 13.1 47.9 4253.9 330.29 0.0232
Get a free quote by E-mail: sales@hdcoverheadconductor.com .
There are other acsr conductor types and standards, so if you can’t find the aluminum conductor steel reinforced size from the catalog, you can contact us. Our manager will supply acsr conductor specifications and price as soon as possible. Email: sales@hdcoverheadconductor.com .
What’s the advantage of acsr conductor?
Now, aluminium conductor steel reinforced cable is very popular, and we use it in many cases. Because the steel has strong strength, it can bear more weight. Meanwhile, the aluminum conductor steel reinforced is high heat resistance and high conductivity. So acsr bare wire combines light weight and high conductivity of aluminum with strength of the steel core. That enables aluminum conductor steel reinforced with higher tensions, less sag, and longer spans than aac conductor . What’s more, if you purchase aluminum conductor steel reinforced cable for your project, it can reduce your cost. Email: sales@hdcoverheadconductor.com
Besides, from the acsr conductor application, the acsr aluminum conductor steel reinforced widely used in curious voltage levels overhead transmission and distribution lines. Especially there are rives and valley, acsr panther conductor can overcome these problem. So if your case are in these area, you can consider aluminium conductor steel reinforced cable. For more aluminum conductor steel reinforced sizes or specifications, please contact us. In addition, we will also send you best acsr conductor price. However, another advange of aluminum conductor steel reinforced is convenient to install. Croatia Mozambique, Togo, Yemen, Malaysia, Indonesia, Philippines, Thailand, Vietnam, Myanmar and so on.

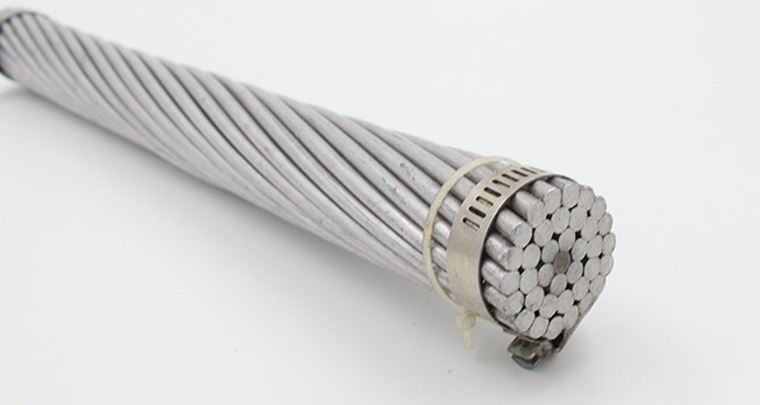

Where can you get the best acsr aluminum conductor steel reinforced price?

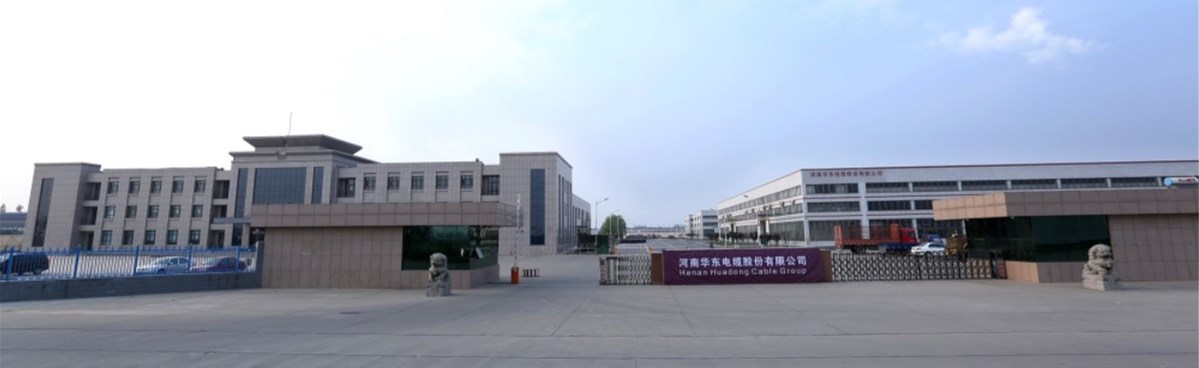

In fact, if you look for aluminium conductor steel reinforced, you can find many acsr conductor manufacturers. For example, there are acsr conductor suppliers from Malaysia, Philippines, Vietnam, Myanmar, Indonesia, Australia or other countries. However, you need to compare the acsr aluminum conductor steel reinforced prices. China has the cheapest aluminum in the world, and aluminum is the main material of aluminum conductor steel reinforced. Huadong Cable Group is located in Henan province. So we can supply cheap acsr conductor for our customers. Email: sales@hdcoverheadconductor.com
In addition to acsr conductor price, I think the quality is also important. So when you buy aluminum conductor steel reinforced, you need to search a reliable acsr dog conductor manufacturer . Before acsr aluminum conductor steel reinforced leave the factory, we will test strictly from various aspects. We promise to sell quality and cheap acsr aluminum conductor steel reinforced. Email: sales@hdcoverheadconductor.com .
